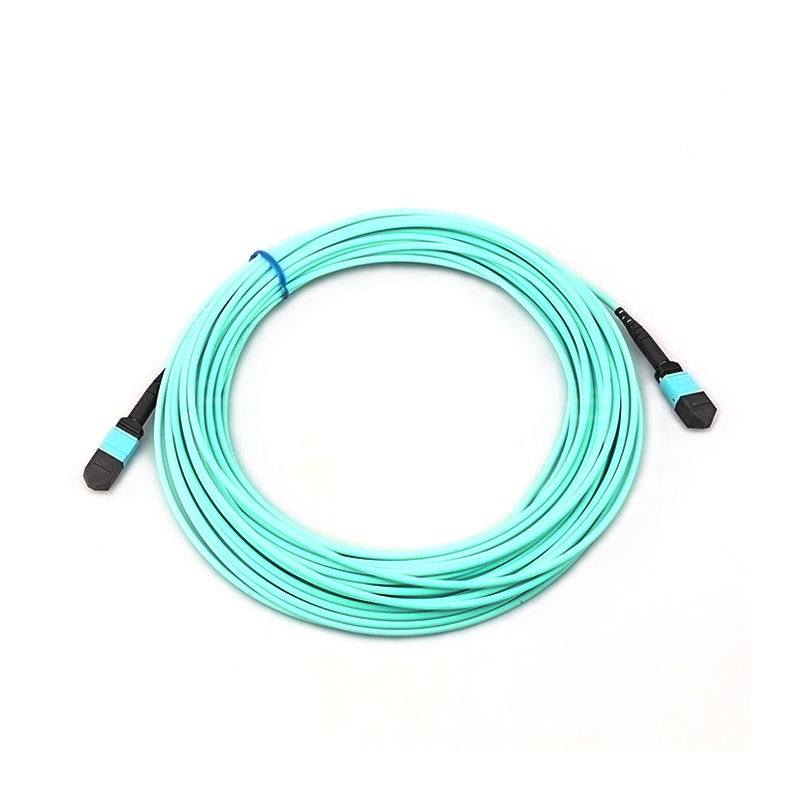

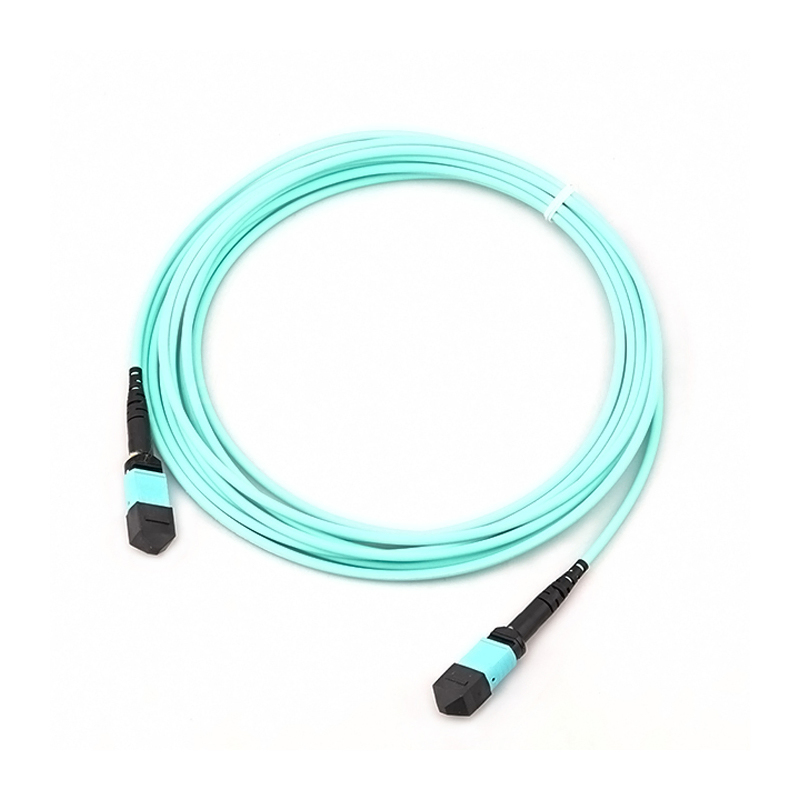

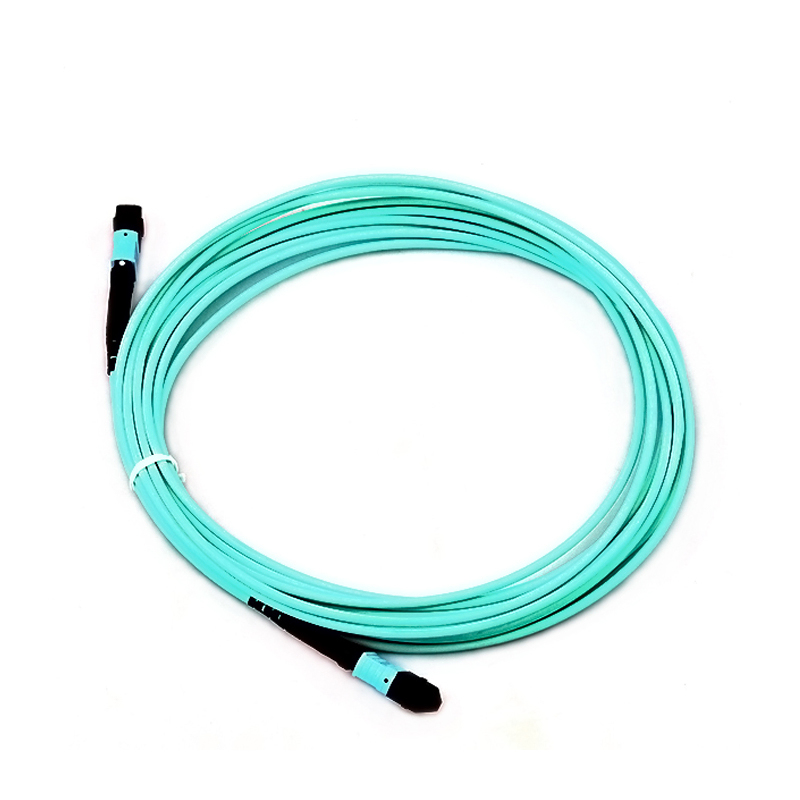

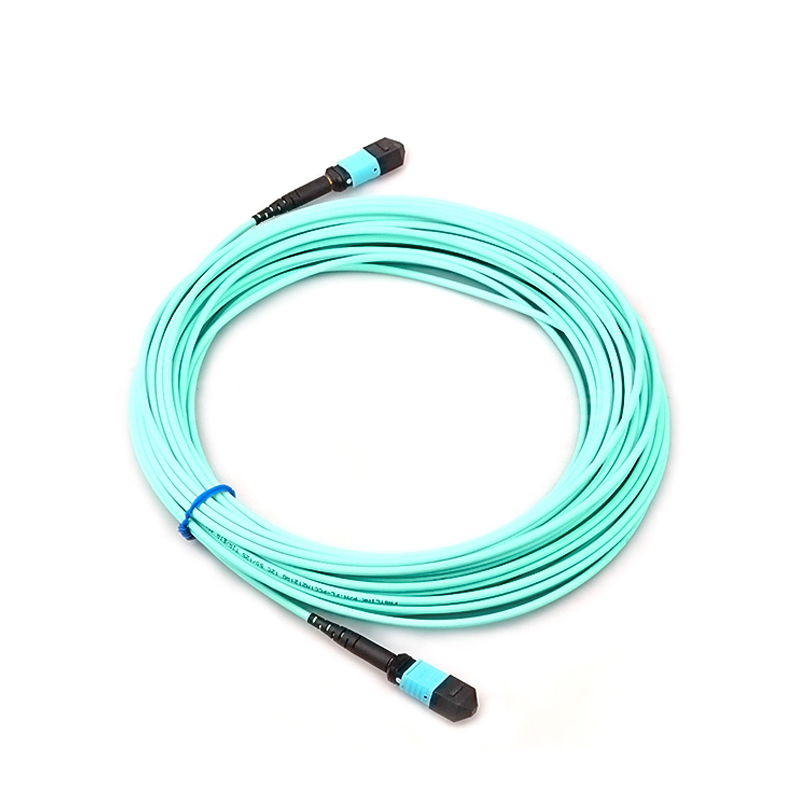

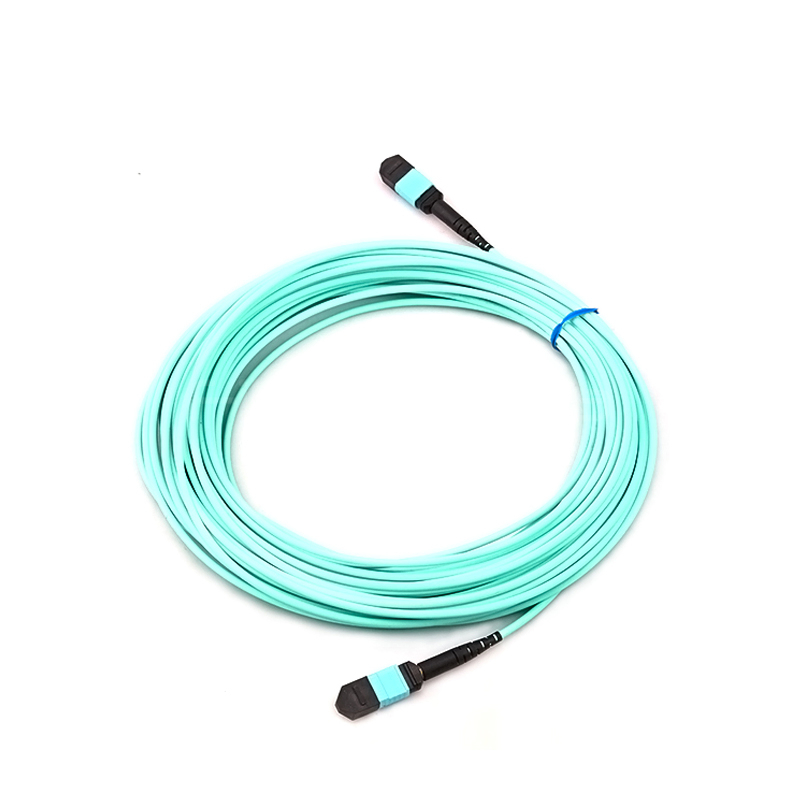

High Density MPO Trunk Cable for 40G/100G/400G Networks with 150m at 850nm and 400m at 850nm Transmission
High Density MPO Trunk Cable for 40G/100G/400G Networks with 150m at 850nm and 400m at 850nm Transmission High Density MPO Trunk Cable for 40G/100G/400G Networks with 150m at 850nm and 400m at 850nm Transmission High Density MPO Trunk Cable for 40G/100G/400G Networks with 150m at 850nm and 400m at 850nm Transmission High Density MPO Trunk Cable for 40G/100G/400G Networks with 150m at 850nm and 400m at 850nm Transmission High Density MPO Trunk Cable for 40G/100G/400G Networks with 150m at 850nm and 400m at 850nm Transmission
Contattaci

High Density MPO Trunk Cable for 40G/100G/400G Networks with 150m at 850nm and 400m at 850nm Transmission

Quantità di ordine minimo : 10 Prezzo : 3.2
Certificazione: RoHS, CE, ISO9001 Documento: Brochure del prodotto PDF

Informazioni dettagliate
Struttura di connessione: MPO-MPO Forma materiale: Filo rotondo
Consentito resistenza alla trazione: <100n Nucleo: Multicore
Connettore a: Femmina MPO Connettore b: Femmina MPO
Modalità in fibra: OM4 50/125μm Distanza 40/100G: 150m a 850nm
Distanza 10G: 400 m a 850nm Fibra di vetro: Corning ClearCurve®
Raggio minimo di piegatura: 3,0 mm Lunghezza d'onda: 850/1300nm
Attenuazione a 850 nm: ≤2,3 dB/km Attenuazione a 1300nm: ≤ 0,6 dB/km
Carico di tensione dell'installazione: 66n Resistenza alla trazione: 80/240N
Perdita di inserzione: Tipico ≤ 0,30 dB, massimo ≤ 0,75 dB Perdita di ritorno: ≥50dB, ≥55dB(Elite)
Ripetibilità: ≤0,1 dB Durabilità: ≤0,2 dB (accoppiamento 1000 volte)
Conta delle fibre: 8/12/24/48/72/96/144 Fibre Giacca via cavo: PVC/OFNR/OFNP/LSZH
Evidenziare:

40G/100G/400G MPO Trunk Cable

,

150m at 850nm MPO Patch Cord

,

400m at 850nm Fiber Optic Jumper

Descrizione di prodotto

High Density MPO-MPO Female/Male Trunk Cable Patch Cord Fiber Optic Jumper, OM3 OM4, Aqua

FiberMania supplies MTP® breakout cables in single-mode and multimode configurations, available with 12, 24, 48, and 72 fibers. These assemblies split one 12-strand MTP® fiber optic cable into 12 individual SC cables. Available in both male and female styles with various lengths and fan tube diameters.

High Density MPO Trunk Cable for 40G/100G/400G Networks with 150m at 850nm and 400m at 850nm Transmission 0

MTP/MPO Cable Assemblies (also known as MTP® Breakout Fiber) are ideal for data distribution patch panels and plenum applications.

Key Features
  • Multi-core Connectivity: Compatible with 12F/24F/48F/72F jumpers
  • High Bandwidth & Low Loss: Precision-polished fiber end faces with ≤0.3dB insertion loss, supporting 40G/100G/400G high-speed transmission
  • Durable Construction: OM3/OM4 fiber with dust-proof buckle design, >500 plug cycles, anti-bending and anti-interference
  • Plug-and-Play: Pre-terminated design saves 90% installation time
  • Flexible Configuration: Customizable in 12/24/48 cores with lengths from 0.5m to 50m
Technical Specifications
Connector MPO/MTP (Male/Female)
Fiber Mode SM(OS2) | MM(OM1/OM2/OM3/OM4/OM5)
Polishing Type PC | APC | PC
Insertion Loss Typical≤0.30dB Max≤0.75dB (Standard)
Typical≤0.15dB Max≤0.35dB (Elite)
Return Loss ≥50dB (Standard) ≥55dB (Elite)
Repeatability ≤0.1dB
Durability ≤0.2dB (1000 mating cycles)
Fiber Count 8/12/24/48/72/96/144 Fibers
Cable Jacket PVC/OFNR/OFNP/LSZH
RoHS Compliance Compliant
Applications
  • Data Distribution Patch Panels
  • High-Density Networking Environments
  • Plenum Spaces
  • MPO/MTP Adapter Panel Integration
  • Active Optical Network Transceiver Control
  • Optical Fiber Distribution Systems
Product Advantages
  • Versatile Fiber Options: Single-mode and multimode configurations
  • Multiple Fiber Counts: 12, 24, 48, or 72 fibers available
  • Breakout Design: Splits MTP® cable into 12 individual SC cables
  • Flexible Configurations: Male and female styles with customizable lengths
Quality Testing
High Density MPO Trunk Cable for 40G/100G/400G Networks with 150m at 850nm and 400m at 850nm Transmission 1

IL and RL Testing: Verifies insertion loss and return loss for stable signal transmission.

High Density MPO Trunk Cable for 40G/100G/400G Networks with 150m at 850nm and 400m at 850nm Transmission 2

3D Interferometer Testing: Ensures connector parameters meet specifications for reliable connections.

High Density MPO Trunk Cable for 40G/100G/400G Networks with 150m at 850nm and 400m at 850nm Transmission 3

End-Face Inspection: Examines connector tips for defects to maintain communication quality.

Production Equipment
High Density MPO Trunk Cable for 40G/100G/400G Networks with 150m at 850nm and 400m at 850nm Transmission 4
Certifications
High Density MPO Trunk Cable for 40G/100G/400G Networks with 150m at 850nm and 400m at 850nm Transmission 5
Packaging & Shipping
High Density MPO Trunk Cable for 40G/100G/400G Networks with 150m at 850nm and 400m at 850nm Transmission 6
Frequently Asked Questions
Q1: What is the warranty of FiberMania's fiber patch cord?
A: FiberMania warrants all fiber patch cords against defects in material and workmanship for five (5) years from supply date. All cables are UL profiled and 100% tested.
Q2: Is it possible to customize our brand information on your fiber cable?
A: Yes, we can print your brand name on the cable jacket with a minimum 1KM total cable length requirement.
Q3: Can you do 3D interferometer test?
A: Yes, we perform 3D testing per customer request with pass rates exceeding 90% (up to 100% when required).
Q4: What is your MOQ?
A: We only require MOQ for special customized orders (minimum 1km total length). Bulk cable can be stocked for urgent orders.
Q5: Are free samples available?
A: Yes, we provide free samples for customer projects when total cost is under $50 USD.
