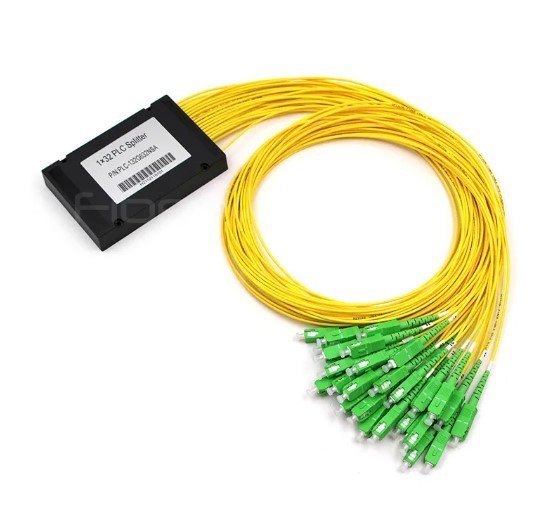

1×32 PLC Splitter with ABS Module, 2.0mm Input & Output

Descrizione di prodotto

The FiberMania 1×32 PLC Splitter with ABS Module delivers precise and stable optical signal distribution for FTTx, GPON, BPON, EPON, and telecom networks. Built with SMF-28e single-mode fibers and housed in a durable ABS casing, it ensures low insertion loss, excellent channel uniformity, and long-term reliability in demanding environments.

Pre-terminated with SC/APC connectors and 2.0mm ruggedized fibers, this splitter offers fast installation and superior protection against mechanical stress. Designed for both indoor and outdoor applications, it’s ideal for central offices, distribution points, and optical access networks. OEM/ODM customization for fiber length, connector type, and module size is available to meet specific project needs.

Specifications

• Configuration: 1×32

• Connector Type: SC/APC

• Fiber Type: SMF-28e Single Mode

• Fiber Diameter: 2.0mm (input & output)

• Housing Type: ABS Module

• Operating Wavelength: 1260–1650 nm

• Insertion Loss: ≤17.0 dB

• Uniformity: ≤1.5 dB

• Return Loss: ≥55 dB

• Directivity: ≥55 dB

• Operating Temperature: -40°C to +85°C

Features

• Compact ABS module for easy installation and handling

• Low insertion loss and high channel uniformity for reliable network performance

• SC/APC connectors for stable, low-reflection connections

• 2.0mm ruggedized fibers for enhanced durability

• Compatible with GPON, BPON, EPON, and FTTx systems

• Available with custom cable lengths and connector types

Applications

• Fiber-to-the-Home (FTTH) and Fiber-to-the-Building (FTTB) networks

• Passive optical network (PON) systems

• Central office and optical distribution frames

• Metro and long-haul telecom networks

• Test and measurement equipment
